EP 2 | Accounting in payment systems 📗

Hi, Aniket here 👋🏻 and welcome to my System Design Newsletter 😊!

In the previous post, we learned how to design a payment system. This post is about one of the most important pieces of a payment system, the “Ledger System” which serves the following purposes:

1. Maintaining accounts payable and receivable

2. Reconciliation

3. Determining revenue and profitability

Basic ledger system

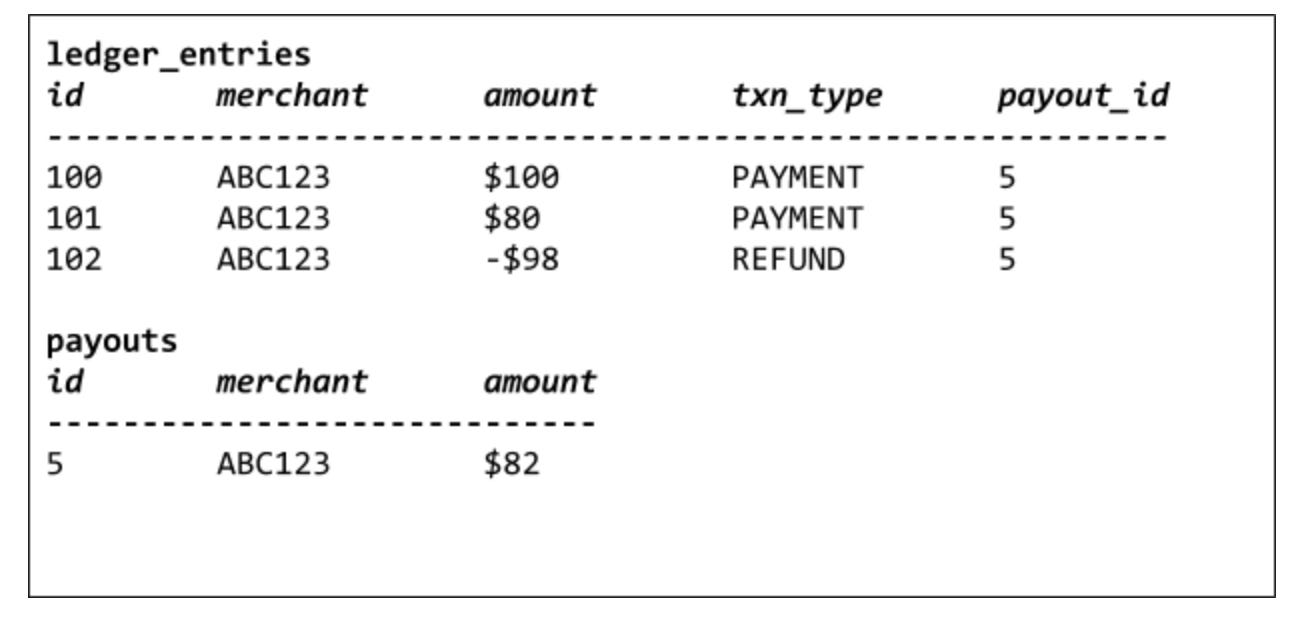

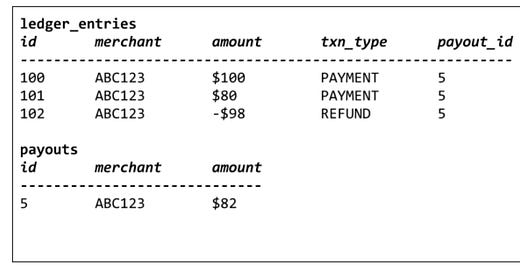

Figure 1 shows the design of a basic ledger system that maintains the amount, txn_type, and merchant who has to be paid out.

Figure 1: Basic ledger system

Challenges

Though it’s simple, the above system poses the following challenges:

1. Slow settlement: Calculating the balance for a merchant requires an expensive GROUP BY aggregate for each merchant, which struggles if you have to pay out millions of payments daily (think Amazon’s scale).

2. Partial payments: It’s impossible to split a single payment into multiple payouts since there is a many-to-one relationship between payments and payouts. This makes for frustrating product limitations - if a merchant deemed risky makes a single $100,000 transaction, either the entire transaction has to be blocked or none of it.

3. Data inconsistency: Since this is just a SQL database, nothing is preventing the payouts from becoming inconsistent. The payout_id can be ensured to be a valid foreign key, but nothing is stopping it from being nulled out.

Double-entry accounting

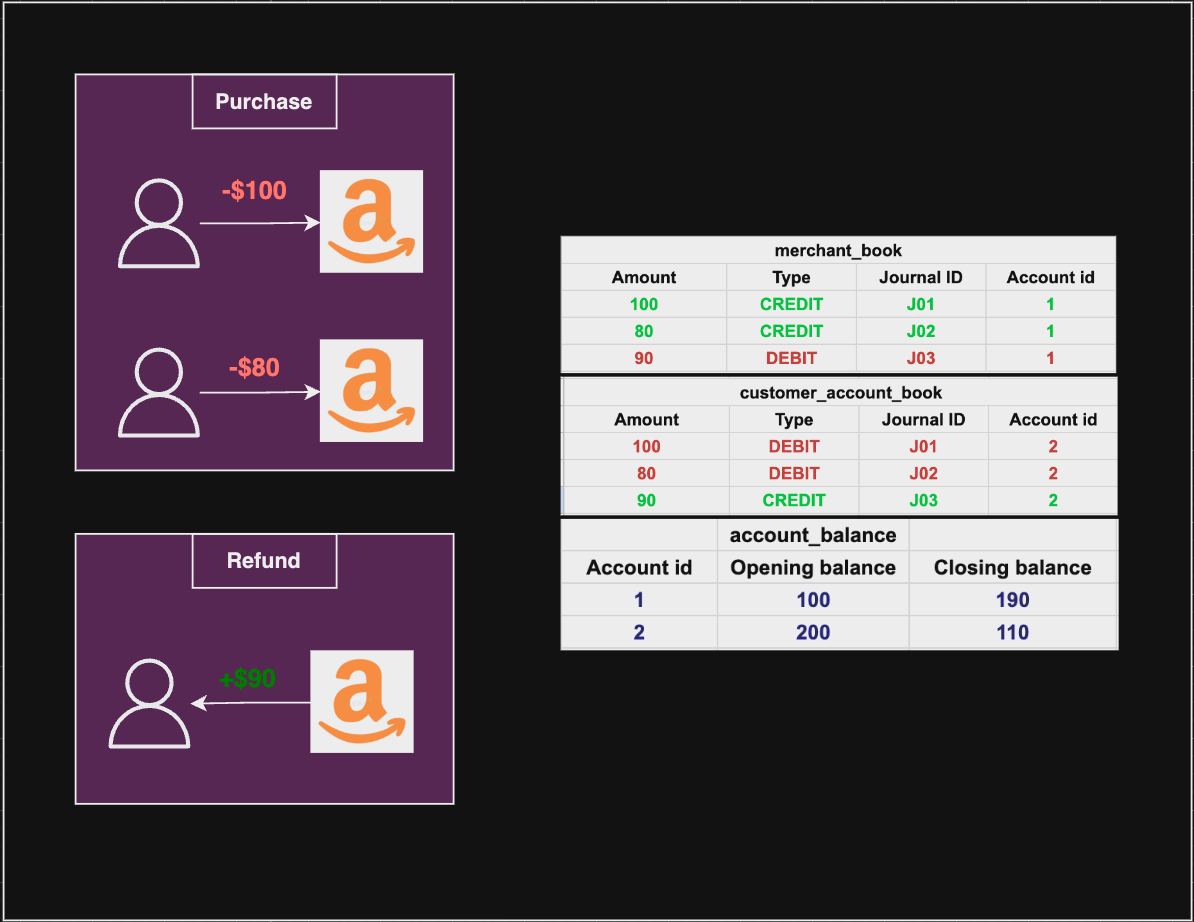

Figure 2: Double Entry accounting with Books and Journals

Enter Double-entry accounting. It is a battle-tested approach to modeling financials. Here’s how:

1. It forces you to state not just what financial state change occurred, but why.

2. This is done by maintaining Books and Journal Entries:

   1. Each book maintains it’s own set of CREDIT/DEBIT transactions.

   2. Each transaction should have at least two journal entries in the ledger system (hence the name double-entry) where every entry must have a source account and a target account.

3. According to the accounting equation, every journal entry must balance to 0, so each cent lost is matched with a cent gained.

4. Figure 2 shows “merchant_book” and “customer_account_book” for the example we took in Figure 1.

   1. The first $100 transaction has two entries: a CREDIT entry in merchant_book and a corresponding DEBIT entry in customer_account_book, under the same Journal ID J01.

   2. Account balances are maintained separately in account_balance table for quick settlements. This solves the GROUP BY query challenge mentioned earlier.

This is how a ledger system is designed, only a real ledger is more complicated.
Applying these strict accounting rules makes reconciliation much easier!
